Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc

Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc

ชื่อแบรนด์: Comesh
เลขรุ่น: รถ-0065
MOQ: 100 ชิ้น
ราคา: สามารถต่อรองได้
เงื่อนไขการจ่ายเงิน: T/T, เวสเทิร์นยูเนี่ยน,
ความสามารถในการจําหน่าย: 800 ม้วนต่อเดือน
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
SGS
ชื่อ:
สแตนเลสย้อนกลับดัตช์สานลวดหน้าจอพลาสติกอัตโนมัติแผ่นกรองหน้าจอ Extruder
วัสดุ:
สแตนเลส 201 ,304,316L
เส้นผ่านศูนย์กลาง:
5 ซม. 10 ซม. 12 ซม
ตาข่าย:
72/15,152/30,152/24,260/40 ตาข่าย
คุณสมบัติ:
คุณภาพสูง, ความทนทาน, ความทนทาน
แอปพลิเคชัน:
เครื่องวาดลวดพลาสติก เครื่องหล่อฟิล์ม และเครื่องเคลือบฟิล์ม
พิมพ์:
หน้าจอตาข่าย, แผ่นกรองตาข่าย
การใช้งาน:
การกรองแบบหลอมละลายในอุตสาหกรรมพลาสติก
ตัวอย่าง:
ใช้ได้ ตัวอย่างฟรี
รายละเอียดการบรรจุ:
กระดาษคราฟท์ด้านใน, กล่องไม้อัดด้านนอก
เน้น:

Stainless Steel Dutch Weave filter disc

,

Automatic extruder screen filter

,

Reversed weave wire mesh disc

คําอธิบายสินค้า

Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc





Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc Advantages:



plastic extruder filters are resistant to acids, alkalis, corrosion, and high temperatures.

plastic extruder filter mesh has more efficient extruder screening and better filtration performance.

extruder filter screens has Wide range of mesh sizes for different filtration requirements and grades.

mesh belt for screen changer isSuitable for various automatic screen changers.



Applications of Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc



Continuous belt screens are widely used in various screen changers to filter impurities from polymer extrusion processes without interrupting the process.

plastic extrusion filters are primarily used for filtering cast and blown films, composites, resin production, nonwovens, and specialty materials.

plastic extruder black wire mesh filter is widely used in the plastics industry for plastic extrusion and melt filtration, in continuous belt screen changers for PP, PS, PVC, PET, PE, ABS, and PMMA.





Description:



Name Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc
Width 10cm,12cm,12.7cm,15cm,20cm
Mesh 260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style Reverse Dutch Weave
Keywords Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt





Application:



1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.







Mesh
Wire Diameter (mm)
Thickness (mm)
Width (cm)
45x15
0.45x0.6
1.75
8-85
72x15
0.45x0.55
1.7
8-85
120x16
0.35x0.45
1.36
8-85
132x17
0.3x0.45
1.3
8-85

152x24
0.3x0.40
1.2
8-85

160x18
0.28x0.45
1.27
8-85

200x40
0.15x0.27
0.7
8-130

260x40
0.15 x0.27
0.65
8-130

300x40
0.15 x0.27
0.65
8-130

360x40
0.13 x0.27
0.6
8-130

Special specification we can produce according to customer's requirements

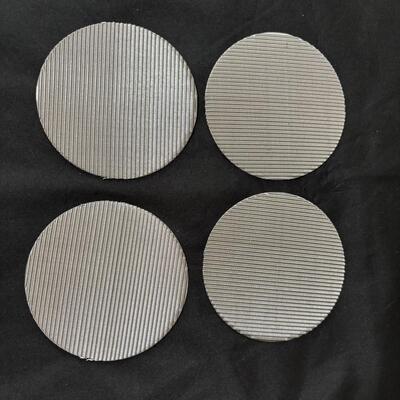

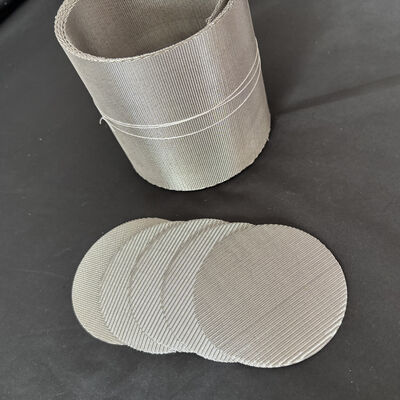

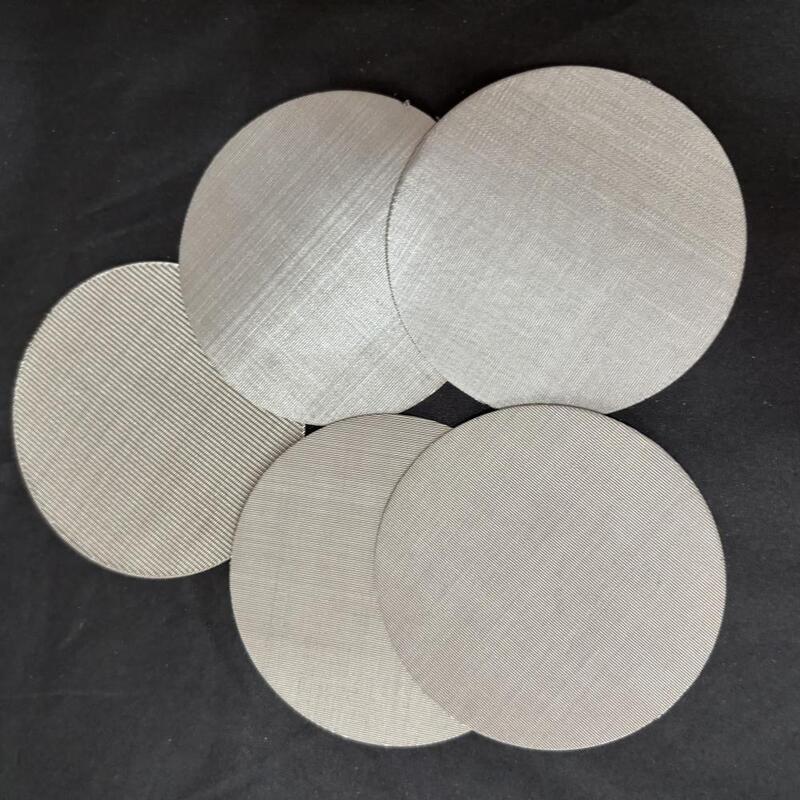

Products show:



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 0



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 1



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 2









Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 3



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 4



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 5



Stainless Steel Reversed Dutch Weave Wire Screen Plastic Automatic Extruder Screen Filter Disc 6
