Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder

ชื่อแบรนด์: Comesh
เลขรุ่น: รถ-0025
MOQ: 50 เมตร
ราคา: สามารถต่อรองได้
เงื่อนไขการจ่ายเงิน: T/T, เวสเทิร์นยูเนี่ยน,
ความสามารถในการจําหน่าย: 800 ม้วนต่อเดือน
ข้อมูลรายละเอียด
สถานที่กำเนิด:
จีน
ได้รับการรับรอง:
SGS
ชื่อ:
ย้อนกลับดัตช์สานลวดสแตนเลสอัตโนมัติตาข่ายกรองตาข่ายเข็มขัดป้องกันสนิมสูงสำหรับเครื่องอัดรีดพลาสติก
วัสดุ:
สแตนเลส 201 ,304,316L
ความกว้าง:
10 ซม.,12 ซม.,12.7 ซม.,15 ซม.,20 ซม
ตาข่าย:
72/15,152/30,152/24,260/40
คุณสมบัติ:
คุณภาพสูง, ความทนทาน, ความทนทาน
ความยาว:
10เมตร,15เมตร,20เมตร
แอปพลิเคชัน:
เครื่องวาดลวดพลาสติก เครื่องหล่อฟิล์ม และเครื่องเคลือบฟิล์ม
พิมพ์:
หน้าจอตาข่าย, แผ่นกรองตาข่าย
การใช้งาน:
การกรองแบบหลอมละลายในอุตสาหกรรมพลาสติก
รายละเอียดการบรรจุ:
กระดาษคราฟท์ด้านใน, กล่องไม้อัดด้านนอก
เน้น:

Reverse Dutch Weave stainless steel wire mesh

,

Auto metal filter screen belt

,

Stainless steel mesh for plastic extruder

คําอธิบายสินค้า

Reverse Dutch Weave Stainless Steel Wire Auto Metal Filter Screen Mesh Belt with High Anti-rust for Plastic Extruder



Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.



Continuous belt screens, refer to reverse dutch weave filter belts made of stainless steel wires. The continuous (automatic) belt screens are the innovation of extruder screens. They are used for screening impurities out of molten plastic. Used with screen changers, the automatic belt filter system allows continuous and uninterrupted production and high filtering performance in cast film and blown film production and other plastic filtering processes.





Description:



Name 201 304 Stainless Steel Reversed Twill Dutch Weave Wire Mesh Extruder Screen Belt Filter Belt for Continuous Screen Changer
Width 10cm,12cm,12.7cm,15cm,20cm
Mesh 260/40mesh,72/15mesh,152/30mesh,152/24mesh
Weave style Reverse Dutch Weave
Keywords Automatic Band Filter Screen Belt/ Reverse Dutch Weave mesh belt





Application:



1. It is suitable for the filtration of plastic wire drawing machine, casting film machine and film coating machine, such as
plastic woven bag, plastic film and so on.
2. In acid, alkali environment conditions sieving and filtering.
3. Petroleum industry as mud mesh.
4. Chemical fiber industry as screen mesh.

5. Plating industry as acid cleaning mesh.
6. Widely used in aerospace, cachinery, plastic products,research and plastic melt filter,molding machine belt type filter conveyor industries.




Advantage:

  • Continuous (automatic) belt filter has the resistance to acid, alkali, corrosion and high temperature.
  • More effective in extruder screening and better filtration performance.
  • Wide ranges of mesh sizes for different filtration requirements and grades.
  • Suitable for various automatic screen changers.
  • Uninterrupted replacement for effective production.





Mesh
Wire Diameter (mm)
Thickness (mm)
Width (cm)
45x15
0.45x0.6
1.75
8-85
72x15
0.45x0.55
1.7
8-85
120x16
0.35x0.45
1.36
8-85
132x17
0.3x0.45
1.3
8-85

152x24
0.3x0.40
1.2
8-85

160x18
0.28x0.45
1.27
8-85

200x40
0.15x0.27
0.7
8-130

260x40
0.15 x0.27
0.65
8-130

300x40
0.15 x0.27
0.65
8-130

360x40
0.13 x0.27
0.6
8-130

Special specification we can produce according to customer's requirements

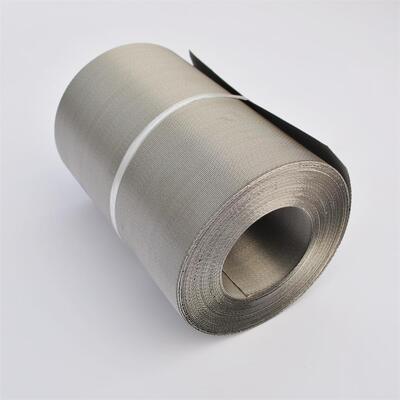

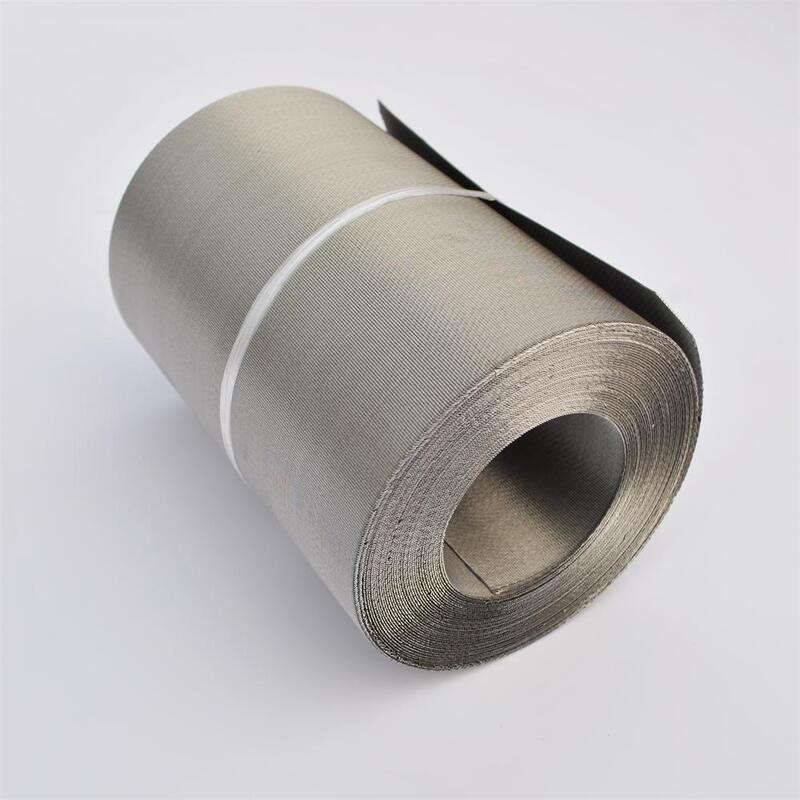

Products show:
